产品详情

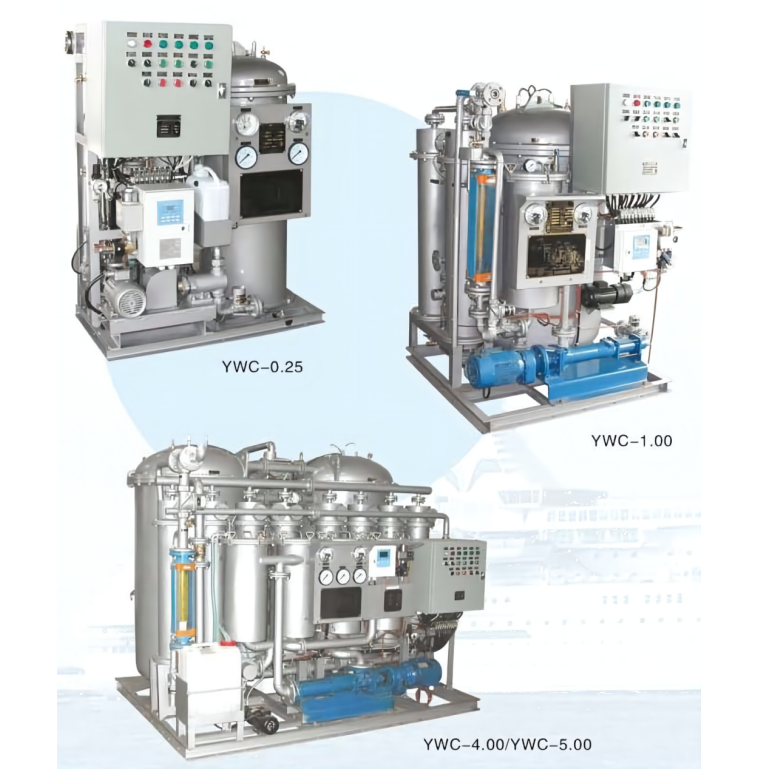

YWC系列15ppm舱底水分离器是根据国际海事组织IMO MEPC.107(49)决议的要求而开发设计的环保设备，出水含油量≤15ppm。此设备正属于海上环境保护高端技术产品，可对船舶上含各种燃料油，密度极高的残余渣油以及由氧化铁、表面活性剂等组成的乳化液混合物的舱底水进行有效处理。
该装置除适用于船用舱底油污水处理外，还可用于港口、码头、工矿企业的油污水处理，其排放标准完全符合我国环保部门的有关要求。
YWC Series 15ppm Bilge Separator is a kind of environmental protection product designed based on International Maritime Organization IMO MEPC.107(49) standard, the oil content in effluent water ≤15ppm. This separator is the high- tech newest product which can effectively dispose all kinds of fluids in bilge water including fuel oil, high-density residual oil and emulsion mixture combined with black ferric oxide and surfactant.
This separator can also be used in industrial and petroleum, besides in ship vessels. The effluent oil content from YWC can meet any standards of Environment Bureau in China.
技术参数 （Technical Data）
型 号 Type |
YWC-0.25 |
YWC-0.50 |
YWC-1.00 |
YWC-1.50 |
YWC-2.00 |
YWC-2.50 |
YWC-3.00 |
YWC-4.00 |
YWC-5.00 |
额定处理量(m3/h) Rating Capacity (m3/h) |
0.25 |
0.50 |
1.00 |
1.50 |
2.00 |
2.50 |
3.00 |
4.00 |
5.00 |
泵电机功率(kW) Power of pump (kW) |
0.37 |
0.55 |
0.75 |
1.10 |
1.10 |
1.50 |
1.50 |
2.20 |
2.20 |
电加热器功率(kW) Electric heater power (kW) |
3 |
3 |
3 |
3 |
2×3 |
2×3 |
2×3 |
4×3 |
4×3 |
油份浓度计 15ppm Bilge Alarm |
含 included |
含 included |
含 included |
含 included |
含 included |
含 included |
含 included |
含 included |
含 included |

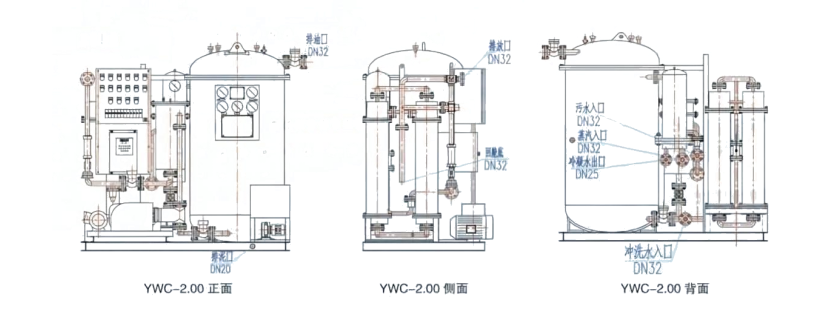

装置底座 （槽钢，长*宽） Base(channel steel) (mm) |
#5 1000*600 |
#6 1100*690 |
#6 1050*1000 |
#6 1100*1130 |
#8 1900*1120 |
#8 1900*1120 |
#8 1750*1500 |
#10 2280*1700 |
#10 2280*1700 |
外形高度 (mm) Height (mm) |
1250 |
1460 |
1620 |
1660 |
1700 |
1900 |
2020 |
1950 |
2000 |
干/净重 (kg) Dry/wet weight (kg) |
400/550 |
600/800 |
800/1200 |
1060/1810 |
1260/2260 |
1500/2800 |
1800/3200 |
2100/3900 |
2500/4600 |
适用船舶 （净载吨） Applicable ship vessel |
1000吨 以下 ＜1000 DWT |
1000-5000 吨 1000～5000 DWT |
5000-1万 吨5～10 KDWT |
1万-3万吨 10～30 KDWT |
3万～5万吨 30～50 KDWT |
5万 ～10万吨50～100 KDWT |
10万 ～20万吨100~200 KDWT |
10万 ～30万吨100～300 KDWT |
30万吨以上300KDWT above |
注：本公司保留装置外形尺寸更改权，此外形仅作参考，具体以实物为准。
Note: Our company keeps the right of modifying the outline, The outline is only for your reference, please take the material object as standard.

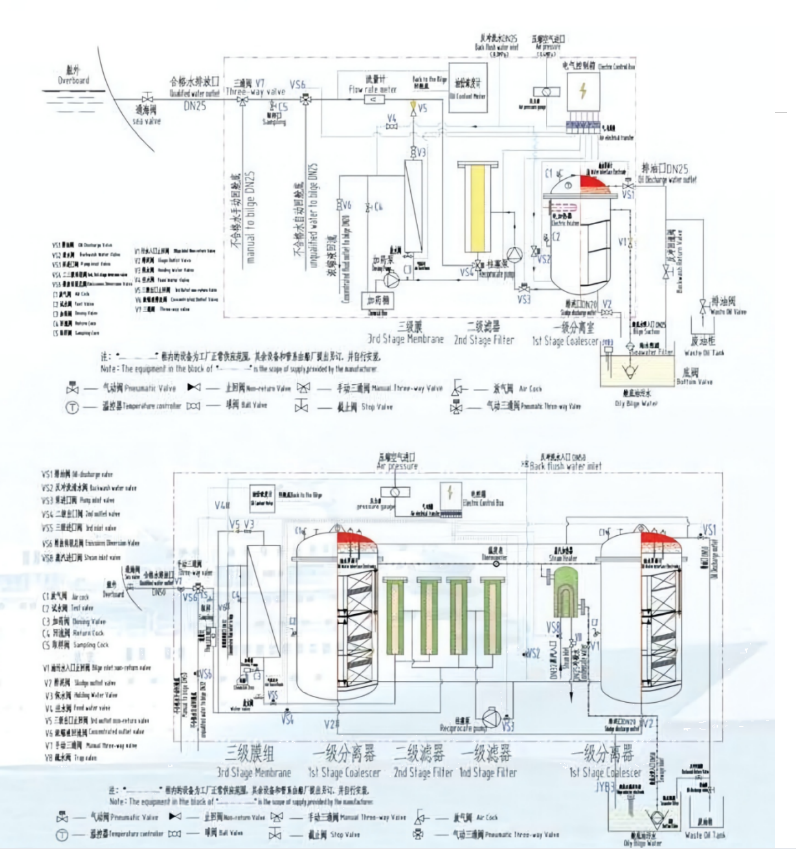

原理概述（Principle Description）
本装置采用蒸汽加热（电加热）--一级斜板重力和聚结分离—一级纤维滤器--二级纤维滤器截流分离--三级超滤膜渗透分离等方法，使含油污的舱底水处理后达到IMO MEPC.107(49)决议排放标准。
The device adopts the combination of steam(electrical) heating; the 1st stage cone wave plate gravity and coalesce separation; the 1st and the 2nd stage fiber filter and the 3rd stage membrane permeation in order to make the treated bilge water to meet the requirements of discharge standard of the resolutions of IMO MEPC.107(49).
