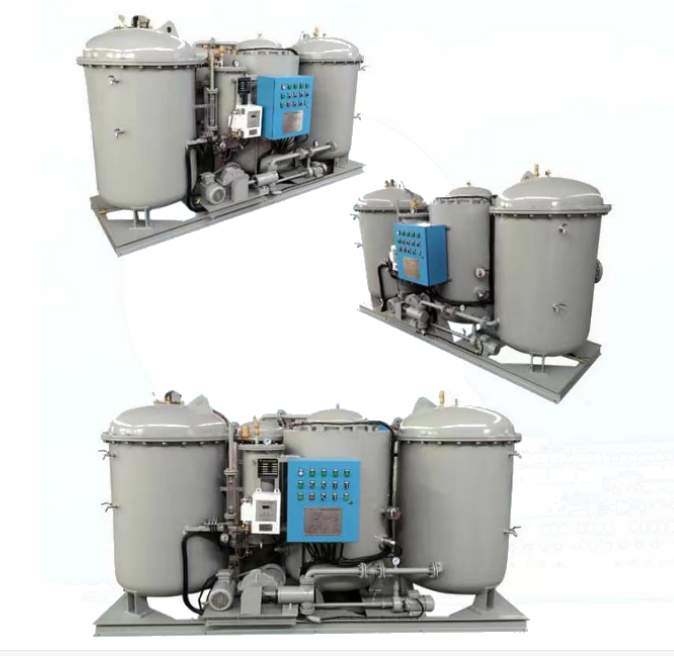

YWC(R)型乳化油处理装置用于对高浓度乳化油污水进行处理，排放水含油量小于15PPm。由破乳器（可选）、电絮凝分离器、初级过滤器、油水分离器、二级过滤器、柱塞泵、控制箱、油份浓度计、气动阀门等组成。
原理概述

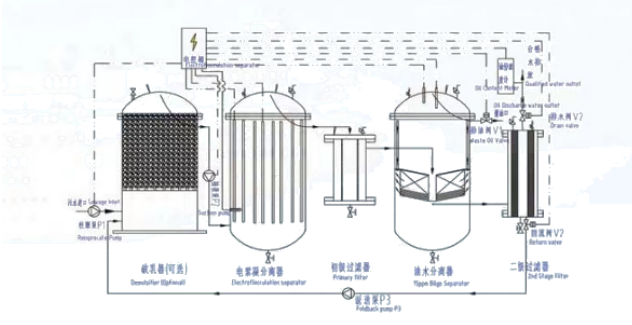

原污水→固相破乳器→电絮凝反应器→过滤→油水分离器→过滤→排放
（可选 ）↓ 不合格回流 ↓
乳化油污水首先进入固相破乳器（乳化油含量高时选用），破坏水与油的电层结构，从而达到破乳的目的；随后进入电絮凝反应器，通过电解分离方式将乳化油从水中进一步分离；处理后的污水随后进入初级过滤器，去除水中的固体颗粒、絮体等物质； 过滤后的油水混合物进入油水分离器，通过聚合斜板将细小的油滴凝聚成大油滴上浮至集油舱内，当达到一定液位后排出，水通过二级过滤器过滤后再排出；排放口设置有油份浓度计，检测排放水中的含油量，当达到排放标准时，排放阀打开，当超标时，回流阀打开，排放水循环再处理，确保排放水质符合要求。
YWC (R) - type emulsion oil processing unit is used for treating high concentration of emulsified oil waste water, and the oil content of the discharged water is less than 15PPm. Is composed of a demulsifier (optional), electric flocculation reactor, primary filter, oil-water separator, secondary filter, piston pump, control box, oil concentration meter, pneumatic valve and so on.
Principle Description
oily water→Solid demulsifier→Electro flocculation reactor→primary Filter→oily water separator→secondary filter→discharge
（option ）↓ unqualified water return ↓
Emulsified oil wastewater into the first solid demulsifier (option as emulsified oil with high content ), in order to damage the layer structure of water and oil, so as to achieve the purpose of breaking; then into electric flocculation reactor, emulsified oil from water further separated by electrolytic separation; the treated water is then entered the primary filter, removal the solid particles and floc material from water ; after filtering, oil-water mixture into the oily water separator, by polymerization of inclined plate into small oil droplets condensed into large droplets float to the oil tank, and discharge when reaching a certain level, then water through secondary filters and discharge; but discharge port is provided with oil content meter, oil content detection the water discharged, when meet emission standards,the drain valve is opened and allow to discharge, when emissions exceed the standard, return valve is opened, recycling and reprocessing, ensure the effluent water quality meets the requirements.
技术参数 （Technical Data）
型号 Type |
YWC（R）- | ||||||||
0.25 |
0.50 |
1.00 |
1.50 |
2.00 |
2.50 |
3.00 |
4.00 |
5.00 | |
额定处理量 Rated capacity m3/h |
0.25 |
0.50 |
1.00 |
1.50 |
2.00 |
2.50 |
3.00 |
4.00 |
5.00 |
排放液油份含量 Discharge standard |
≯15ppm | ||||||||
电加热器功率 Electric heater power（kw） |
3KW × 4 | ||||||||
电制 Electric system |
AC 380V、50Hz、3φ/ AC 415V、50Hz、3φ/AC 440、60Hz、3φ/AC 480V、60HZ、3φ | ||||||||
定量泵电机功率 power of pump（kw） |
0.37 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 |
定量泵吸入高度High suction （m） |
6 | ||||||||
排放压力 Discharge pressure（MPa） |
0.39 | ||||||||

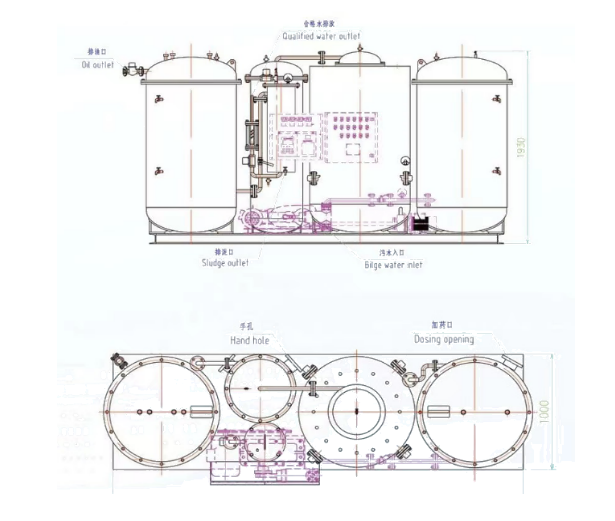

外形尺寸(长×宽×高) Long x width x height(mm) |
1000× 1100× 1475 |
1000× 1100× 1700 |
3100× 1000× 1930 |
3100× 1250× 1900 |
3500× 1300× 1900 |
3500× 1500× 1900 |
3500× 1800× 2000 |
3500× 2100× 2000 |
3500× 2300× 2000 |
底 座 槽 钢 Base channel |
6# |
6# |
8# |
8# |
8# |
10# |
10# |
10# |
10# |
干重 Dry weight （kg） |
900 |
1100 |
1300 |
1560 |
1760 |
2000 |
2200 |
2400 |
2600 |
湿重 Wet weight （kg） |
1150 |
1600 |
2300 |
2560 |
3000 |
3500 |
3900 |
4600 |
5000 |
