SWCM系列-船用生活污水处理装置
分类:环保设备
品牌:业 安
产地:东 台
电话:0515-85756116(设备) / 0515-85751187(消防)

产品详情

船用生活污水处理装置属IMO国际防止船舶造成海洋污染公约《MARPOL 73/78》附则IV的关键设备,用于处理船上厕所下水道粪便污水(又称黑水),使之达到国际排放标准排放至舷处。本系列装置遵守2006 1013日颁布的MEPC.159(55)决议和2012105日通过的MEPC.227(64)决议。

本装置除适用于各大船舶、石油平台生活区外,还可用于陆地生活污水,经处理的水质完全能达到国家回用水水质要求。本装置也可用作船上灰水的处理,但灰水应作预处理和选用容量较大的装置相匹配。

  Marine Sewage Treatment Plant belongs to the key devices for prevention of pollution form ships in seas and oceans according to the revised Annex IV of the International Convention of the Prevention of Pollution (MARPOL 73/78).This device is applicable to treat the sewage, which means human body wastes and the wastes from the toilets on vessels and which is also called “black water”, to meet the effluent standards of IMO. MEPC.15955), and discharge the effluent overboard . This device is according to the resolution MEPC.159(55) enacted on 13 October 2006.The convention (MARPOL 73/78) provides that all STPs installed on board on or after 1 January 2010 should meet the resolution MEPC159(55) and MEPC.227(64).

The device also can be used in terrestrial sewage,besides in ship vessels and oil platform.The water quality after treatment can reach the national reuse water quality requirements. It is also applicable to treat the galleyshower drainage which is called “grey water” on condition that the “grey water” is pretreated and there should select a bigger capacity model to match with.

汇总各种规则和排放标准如下:

The different effluent standards and days for type test in some organizations are as follows

公约 Convention





排放指标

Discharge standard

IMO

老标准

Old standard

IMO

新标准

New standard





USCG





Alaska

TSS(mg/l)

50

35

150

30

BOD5(mg/l)

50

25

无要求NR

30

COD(mg/l)

无要求NR

125

无要求NR

无要求NR

大肠菌群Coliform

(个/100ml)

250

100

200

20

PH

6~9

6~8.5

无要求NR

6~9

余氯 Chlorine(mg/l)

尽可能低NR

0.5

无要求NR

10

型式试验天数

Test days (天)

10

16

10

30



原理概述(Principle Description

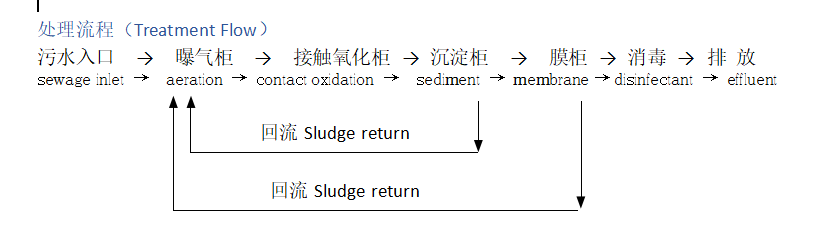

本装置利用活性污泥、接触氧化和膜生物反应器MBR的处理原理消解有机污染物质。MBR 能达到高效、彻底和干净地处理污水,使排放水满足IMO 新标准和其他更严酷的要求。

This device adopts the principle of Activated Sludge, Bio-contact Oxidation and Membrane Biological Reactor (MBR) to digest organic pollutant. MBR can treat organic pollutant efficiently, drastically and cleanly to ensure the effluent can meet the requirements of the resolution MEPC.159 (55) and other much hasher requirements.


技术特点 Specification

1、采用卧式圆筒设计,两端圆形封头,耐压、结构紧凑。

2、装置为全自动控制,符合24小时机舱无人值守的要求。

3、采用内置“MBR”技术,使得装置体积缩小,解决舱容小而装置体积大的矛盾。

4、本装置在生物膜柜和中空纤维膜柜停歇曝气,形成“好氧-缺氧”过程,解决“脱氮除磷”问题。

5、本装置采用沉淀柜和膜柜内污泥自动“气提法”以及膜的“在线”清洗等技术。

6、“在线”清洗技术的应用,使得膜上污垢自动脱落,恢复膜通量,解决了因舱容小,打开清洗或更换膜组的困难。

7、排放水经进一步处理后,可达到“中水回用”的要求。



1.The horizontal cylinder design, both ends of the circular head, pressure, compact structure.

2.The device is fully automatic control, in line with the requirements of 24 hours unattended cabin.

3.The use of built-in "MBR" technology, make the device volume reduced, to solve the contradiction of small cabin capacity and large device volume.

4.The device stops aeration in biofilm cabinet and hollow fiber membrane cabinet to form an "aerobic-anoxic" process and solve the problem of "nitrogen and phosphorus removal".

5.This device adopts sedimentation tank and membrane tank sludge automatic "air lifting" and membrane "online" cleaning and other technology.

6. The application of "online" cleaning technology makes the dirt on the membrane automatically fall off, restores the membrane flux, and solves the difficulty of cleaning or replacing the membrane group due to the small cabin capacity.

7. After further treatment, the discharged water can meet the requirements of "reclaimed water reuse".



技术参数 Technical Data







规格型号Model



SWCM



10



15



20



25



30



40



50



60



80



100



120



150



200



250



300



400









处理负荷Treated Load

平均负荷

L/d) Average load



840



1190



1540



1890



2310



3080



3780



4480



6020



7700



9100



11200



14700



18200



23100



30800

高峰负荷

L/h) Peak load



105



149



193



237



289



385



473



560



753



963



1138



1400



1838



2275



2888



3850

有机负荷(kgBOD5/d) Organic

load



0.42



0.595



0.77



0.945



1.155



1.54



1.89



2.24



3.01



3.85



4.55



5. 6



7.35



9.10



11.55



15.4



额定使用人数(人 Rated capacity (P)



10



15



20



25



30



40



50



60



80



100



120



150



200



250



300



400



最大使用人数(人 Max capacity (P)



12



17



22



27



33



44



54



64



86



110



130



160



210



260



330



440

电制Electricity



AC380V 、50Hz、3φ/AC440V、60Hz、3φ



功率Power(kW)



2.25



2.25



2.5



2.5



2.5



3.0



3.0



3.5



4.0



4.0



4.0



6.0



6.0



7.0



9.0



11.0



外形尺寸(mm) External dimensions 长×宽×高Length×width×height



1350

× 1200

× 1370



1850

× 1200

× 1400



1660

× 1400

× 1550



1890

× 1400

× 1560



1980

× 1500

× 1650



2270

× 1600

× 1700



2300

× 1700

× 1820



2650

× 1700

× 1830



2790

× 1900

× 2050



2706

× 2000

× 2200



3000

× 2000

× 2200



3080

× 2200

× 2300



3630

× 2200

× 2350



3880

× 2400

× 2570



4780

× 2400

× 2600



5980

× 2400

× 2600





重量Weight

Dry weight

kg)



900



1000



1000



1100



1200



1300



1450



1600



1850



2200



2300



2800



3000



3300



3700



4200

湿重

Wet weight

kg)



1775



2283



2640



2740



3500



4400



5073



5270



6517



8268



9166



11340



13267



16538



20357



25417

排放指标Discharge standard



TSS≯35mg/L ,BOD5≯25mg/L,COD≯125mg/L , 大肠菌群数(Coliform)≯100个/100ml,PH:6~8.5

注:本公司保留装置外形尺寸更改权,此外形仅作参考,具体以实物为准。

Note: Our company keeps the right of modifying the outline, The outline is only for your reference, please take the material object as standard.

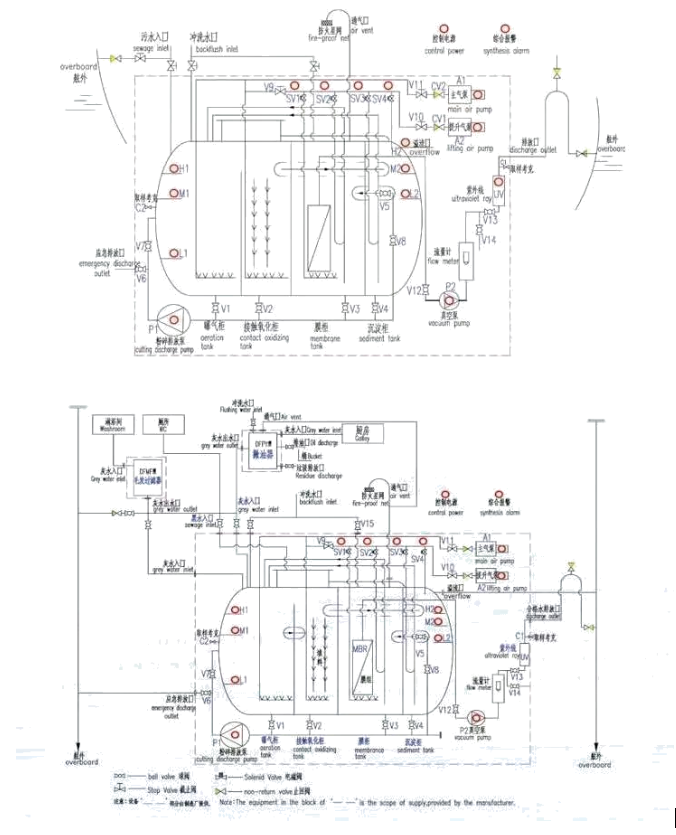

系统原理图 System Principle Drawing)

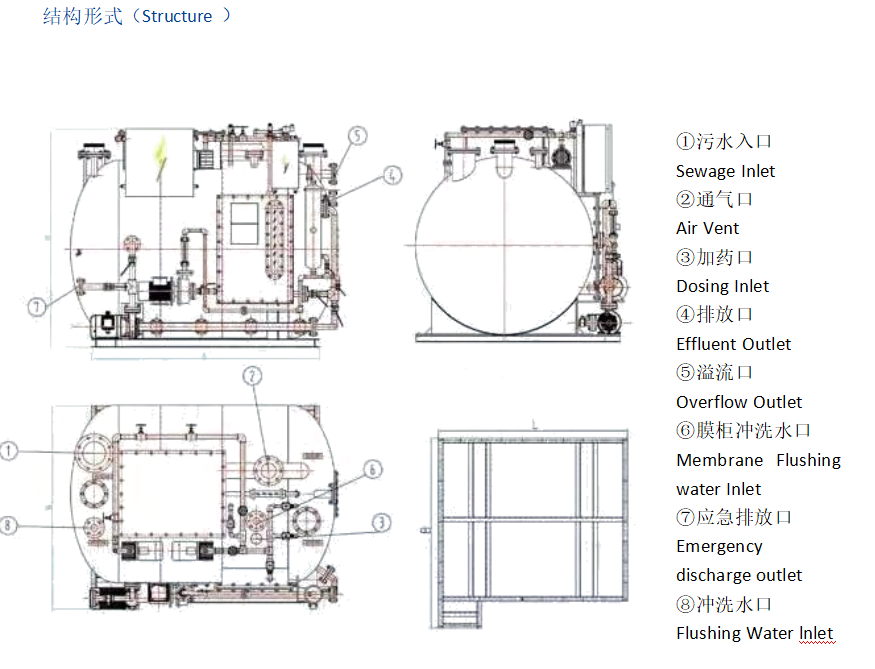

外形尺寸和接口Outline Dimension and Interface





型号规格

Model

外形尺寸

Outline Dimension

(mm)

污水入口Sewage Inlet

DN



通气口Air Vent DN

排放口Effluent Outlet DN

冲洗水口Flushing Water Inlet DN

溢流口Overflow Outlet DN



加药口Dosing Inlet DN

应急排放口Emergency discharge outlet

DN

L

B

H

SWCM-10

1350

1200

1370

150

100

32

40

65

32

40

SWCM-15

1850

1200

1400

150

100

32

40

65

32

40

SWCM-20

1660

1400

1550

150

100

32

40

65

32

40

SWCM-25

1890

1400

1560

150

100

32

40

65

32

40

SWCM-30

1980

1500

1650

150

100

32

40

65

32

40

SWCM-40

2270

1600

1700

150

150

32

40

65

32

40

SWCM-50

2300

1700

1820

150

150

32

40

65

32

40

SWCM-60

2650

1700

1830

150

150

32

40

65

32

40

SWCM-80

2790

1900

2050

150

150

32

40

65

32

40

SWCM-100

2706

2000

2200

150

150

32

40

65

32

40

SWCM-120

3000

2000

2200

150

200

32

40

65

32

40

SWCM-150

3080

2200

2300

150

200

32

40

80

32

40

SWCM-200

3630

2200

2350

150

250

32

40

80

32

40

SWCM-250

3880

2400

2570

150

250

32

40

100

32

40

SWCM-300

4780

2400

2600

150

250

32

40

100

32

40

SWCM-400

5980

2400

2600

150

250

40

40

100

32

40
